Vasat Documentation

Appearance

Code Annotations ​

Code annotations instruct the Vasat UI to render things in particular ways for a specific object type

Customising the list view using annotations ​

Code annotations can be used to control how the Admin interface displays objects.

@FieldUIListPosition(n) ​

This annotation will instruct which fields to display in the UI on the list view

scala
case class Article(
    @FieldUIListPosition(0)
    name:String,

    @FieldUIListPosition(1)
    category:String,

    @FieldUIListPosition(2)
    author:Ref[Author],

    datePosted:Date,
    deleted:Boolean
)

In this example the list view will show name,category, author

@FieldUISoftDelete ​

If your object has a design to have a flag for a soft deleted like deleted=true, or archived=true, this annotation instructs the admin interface as to which field the soft delete is. The UI can then render deleted items with a specific style as well as provide UI options for the 'delete' button to soft delete rather than perform a true delete by default.

scala
case class Article(
    ...
    @FieldUISoftDelete
    deleted:Boolean
)

@ModelHidden ​

If you do not wish the Admin interface to show the model at all.

scala
@ModelHidden
case class Article(
   ...
)

Customising the Editor ​

@FieldTitle(title,?subtitle) ​

By default the admin interface uses the scala name of a field. This annotation allows for a more verbose name and also a subtitle which can give extra information

scala
case class Article(
    @FieldTitle("Article Title","Please conform to our acceptable language policy")
    name:String,
   ...
)

@FieldCheckIn(List[String | (String,String)]) ​

By default the admin interface uses a text field for string types. This annotation creates a pulldown menu of the values specified.

NOTE

The same annotation can be used by the server side to validate the inbound post if the FieldMetaValidator filter is enabled.

eg:

scala
case class Article(
    ...
    @FieldCheckIn(List("sports","science",("Performing Arts","arts")))
    category:String,
    ...
)

When a tuple is used the first value is the human readable value, the second is what is stored against the object.

@FieldStyle ​

Field style can be used to control the widget displayed that maps to a field

eg:

scala
case class Article(
    ...
    @FieldStyle("textarea")
    category:String,
    ...
)

@FieldUIEditorPosition(n,?TAB) ​

This annotation will control the position of a field the item in the Editor view for a single object. It has an option second argument which will control if the field is on a particular 'tab' in the editor view.

scala
case class Article(
    @FieldUIEditorPosition(0)
    name:String,

    @FieldUIEditorPosition(1)
    category:String,

    @FieldUIEditorPosition(0,"Extra")
    author:Ref[Author],

    @FieldUIEditorPosition(1,"Extra")
    datePosted:Date,
    deleted:Boolean
)

In the example above there will be name and category and deleted on the first tab of the editor. And a new tab called 'Extra' will contain the fields author and datePosted

@ModelColumns(List[String]) ​

By default every field in a case class is displayed as a new line on the editor. In some cases collapsing them to all be on 1 line can help with the appearance of the editor.

Each string in the list is a space delimited list of fields you require to be on a single line.

scala

@ModelColumns(List("name category","author datePosted"))
case class Article(
    name:String,

    category:String,

    author:Ref[Author],

    datePosted:Date,
    deleted:Boolean
)

In this example, name and category will appear on the same row, and author and date Posted will be on the next row. Deleted will be on a new line.

@FieldConditionalIf(field, value) ​

Having sections of the editor UI appear only when a condition is met.

Its important that conditional field be optional, otherwise the resulting object will be invalid.

scala
@ModelColumns(List("name category","author datePosted"))
case class Article(
    @FieldCheckIn(List("sports","science",("Performing Arts","arts")))
    category:String,
    @FieldConditionalIf("category", "sports")
    sportsTeam:Option[String],
)

In this example show the field sportsTeam only if the category is 'sports'

@CustomAdminAction(title,path,?icon,?qmap,?method = "post", ?scope = "object",?group = "") ​

Binding a UI button to a custom action. This can allow for simple actions to be attached to an object. The endpoint will need to exist in your vasat project. The annotation will render a convenient button or buttons in the admin interface called 'Custom Action'. The FieldMeta argument takes an array of 'qMap' elements which render as a custom form when the button is pressed. Otherwise the path is posted to immediately with a empty json

scala

@CustomAdminAction("Detect File format","/admin/sample_point/:id","","fal fa-search",List(
  FieldMeta.fromJson(
    """{
    "id":"filename",
    "title":"Filename",
    "type":"string"
    }"""
  )
))
case class Article(
   ...
)

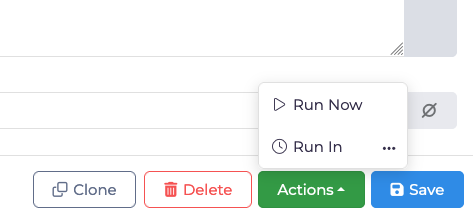

Object scope ​

Scope = object

The default behavior places the custom action under the 'editor' dialog box of a single row

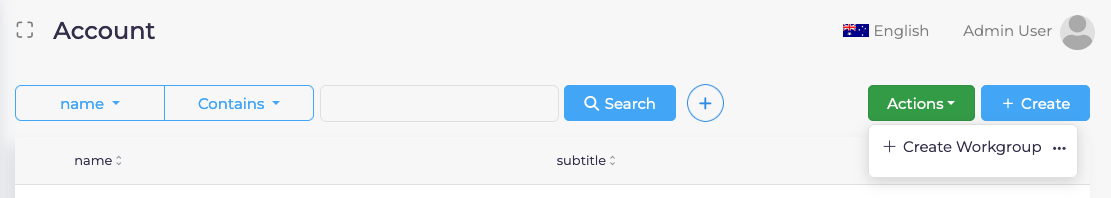

Model scope ​

Scope = model

The model scope places the custom next to the create button on the list view for the coresponding model type.

scala

@CustomAdminAction("Create Workgroup","/admin/sample_point","","fal fa-plus",List(),"post","model")
case class Account(
   ...
)
